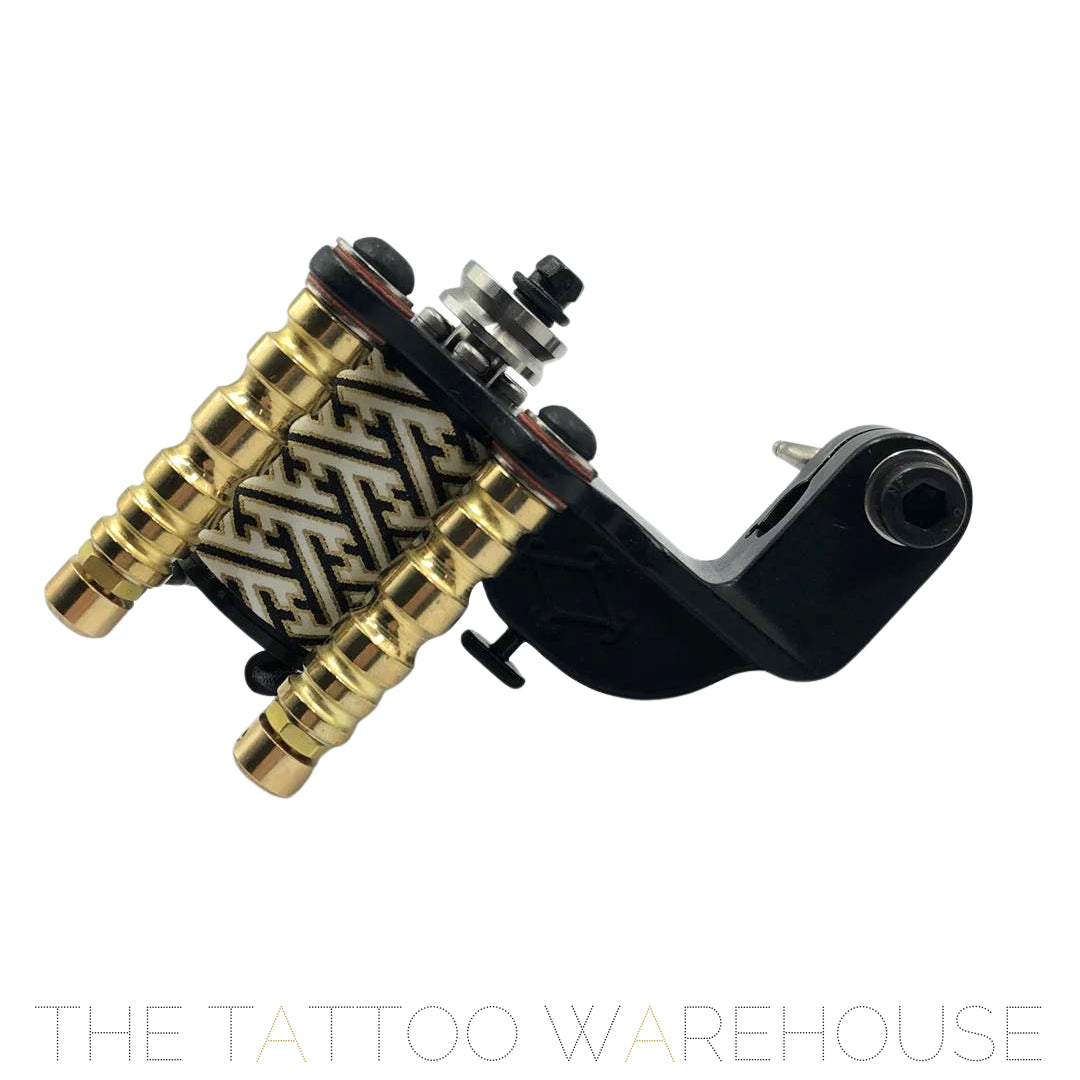

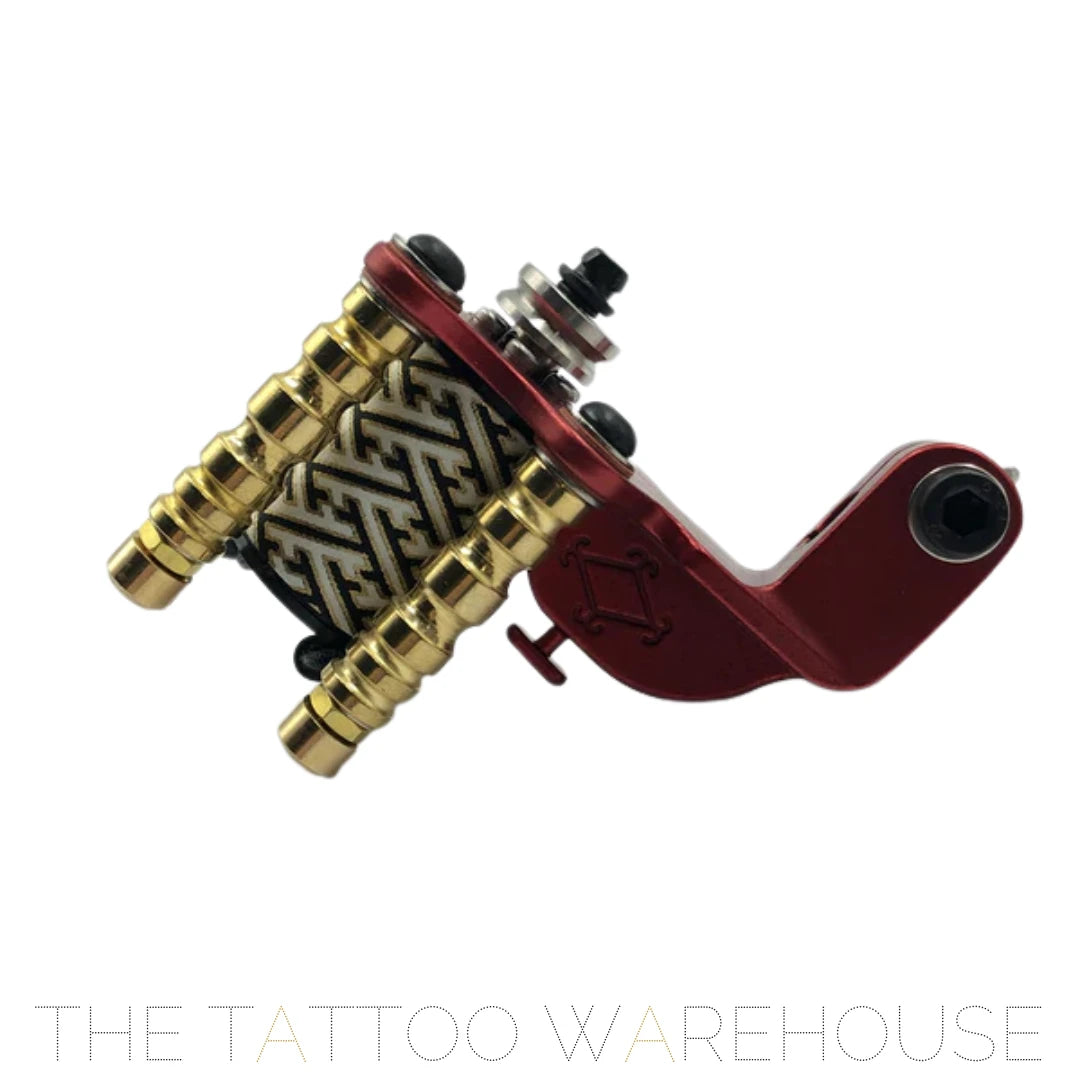

Quinke V1 Cam Set Aluminium

The original QUINKE V1 rotary machine is manufactured by Eru Higa.
The aluminium frame is available in eight colourful colours. You can choose your favourite colour.
The V1 has a lightweight, compact frame and is equipped with a high-performance, world-renowned maxon motor. It is driven by a powerful and stable direct drive.
Basically, it is ideal for black and greys and delicate blurring. For those who prefer a fast machine, it can also be used for Japanese style and American traditional.

This is a great cam set that includes a standard medium stroke cam and two removable rings of different weights.
Changing the weight of the cam changes the needle pressure by centrifugal force. Adjust the settings to your preference for line, shading, colour packing, etc. for all-round use.
Attaching and detaching the ring is as easy as tightening two screws with a 1.27 mm hex driver. See the video for details.

Quinke features the ability to customise to your preference.
Autoclavable tubes, tips, and grips as well as disposable tubes are securely fastened. Among them, we recommend installing grips and needle bars specially designed for cartridge needles, as they work very well with cartridge needles. Other optional parts can be installed to change from clip cords to RCA cables.
This is a highly versatile unit that can be used not only for one purpose, but can be widely used and applied to a variety of applications depending on the customisation, making it a long-lasting favourite.

Weight of the cam
3.6mm CAM body: 7.2g
Recommended for needles with a small number of needles and delicate designs.

CAM body + yellow (aluminium) ring: 9.3g
Ideal for line, shading, and colour packing

CAM body + silver (stainless steel) ring: 13 g
Ideal for line, dot work, and colour packing.

Specifications
Frame: Aluminum (anodized)
Standard stroke: 3.6mm
Weight: 130g
Voltage: 6~9v
Motor: Maxon Motor 12V.
Rotation per minute: 10,000rpm (6w)
